Kolver. CA series. Screwdrivers designed for automated and fixtured applications

CA Serisi

0,015 - 70 Nm

Belgeler

Modeller

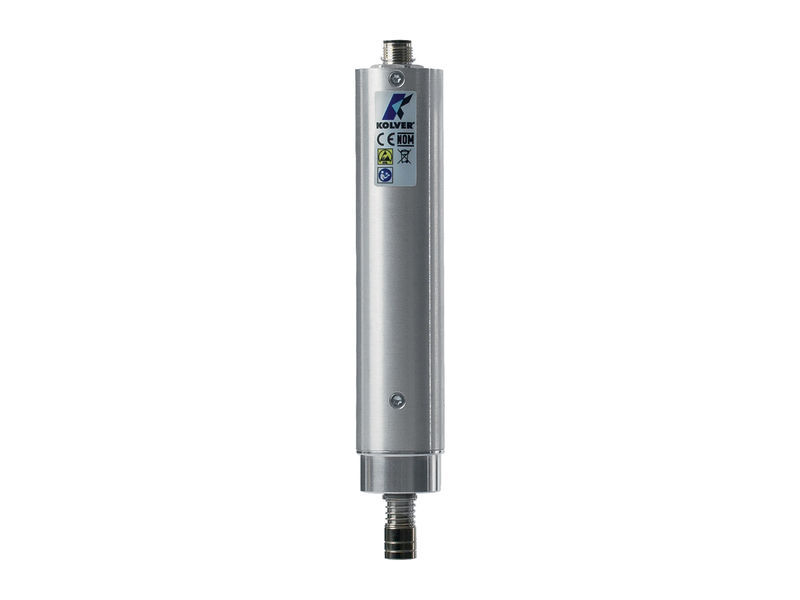

CA screwdrivers are designed for automated and fixtured applications and they feature an aluminum body for easy and quick clamp, as well as special wiring for specific use with SG controllers with remote start and reverse and torque signal.

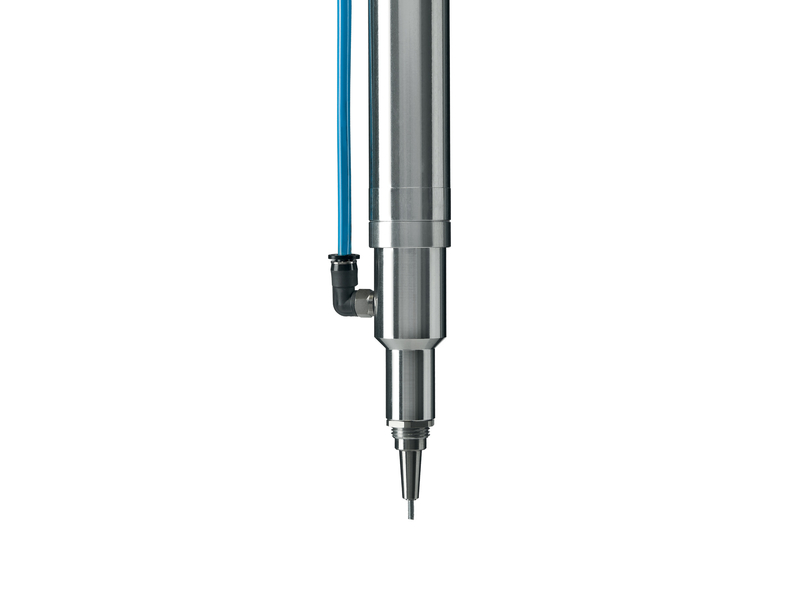

For those applications requiring maximum precision or full Industry 4.0 compliance, the K-DUCER's KDS CA transducerized screwdrivers are very easy to install on robots, automatic machines and autofeeding systems.

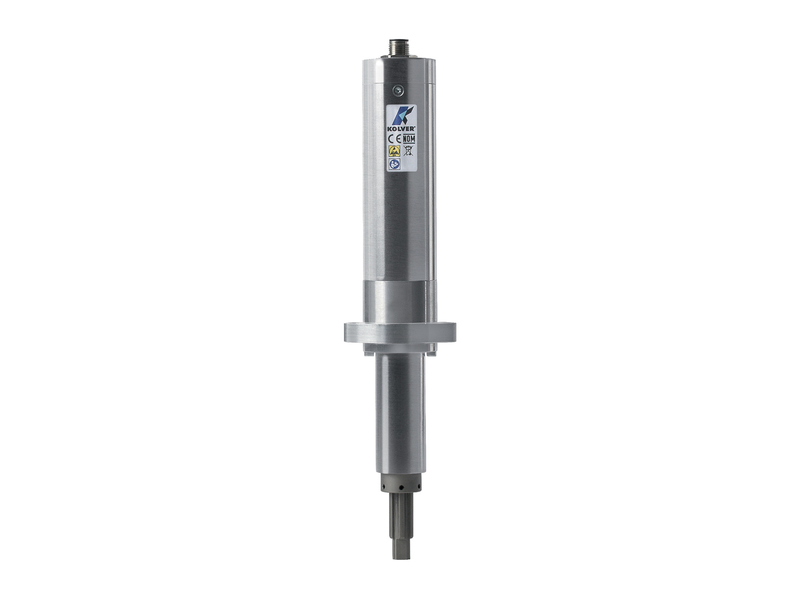

KDS CA/FN models are supplied with flange and telescopic spindle specifically designed for demanding applications. Models with 90° angle heads for hard-to-reach screws are also available.

KDS CA

Model	Kod	Tork No	RPM	BIT Ölçüsü	Ağırlık (kg)	Ölçüler (mm)	Controller
KDS-NT70CA 2D	165150	0.05 - 0.7	20 - 700	Hex 1/4"	0.3	221 x 27	KDU-NT
KDS-NT70CA/HM 2D	165150/HM	0.05 - 0.7	20 - 700	Half moon 4 mm	0.3	221 x 27	KDU-NT
KDS-NT120CA	165151	0.2 - 1.2	20 - 430	Hex 1/4"	0.3	221 x 27	KDU-NT
KDS-NT120CA/HM	165151/HM	0.2 - 1.2	20 - 430	Half moon 4 mm	0.3	221 x 27	KDU-NT
KDS-MT1.5CA 2D 2D Expl 3D	175115	0.1 - 1.5	50 - 850	Hex 1/4"	0.9	237 x 40	KDU-1A
KDS-PL3CA	135103	0.4 - 3	50 - 1800	Hex 1/4"	0.9	248 x 40	KDU-1A
KDS-PL6CA 2D 3D	135106	0.5 - 6.0	50 - 850	Hex 1/4"	0.9	248 x 40	KDU-1A
KDS-PL10CA 2D 3D	135110	0.8 - 10	50 - 600	Hex 1/4"	0.9	248 x 40	KDU-1A
KDS-PL15CA 2D 3D	135115	0.5 - 15	50 - 320	Hex 1/4"	0.9	248 x 40	KDU-1A
KDS-PL20CA 2D	135120	2 - 20	20 - 210	Sq 3/8"	1.3	297 x 48	KDU-1A
KDS-PL35CA 2D 3D	135135	3 - 35	20 - 140	Sq 3/8"	1.8	318 x 57	KDU-1A
KDS-PL50CA 2D 3D	135150	5 - 50	20 - 90	Sq 1/2"	1.8	322 x 57	KDU-1A

KDS CA with flange mount

Model	Kod	Tork No	RPM	BIT Ölçüsü	Ağırlık (kg)	Ölçüler (mm)	Controller
KDS-MT1.5CA/FN 2D 3D	175115/FN	0.1 - 1.5	50 - 850	Hex 1/4"	1.1	316 x 40	KDU-1A
KDS-PL3CA/FN-1/4	135103/FN-1/4	0.4 - 3	50 - 1800	Hex 1/4"	1.1	350 x 40	KDU-1A
KDS-PL6CA/FN 2D 3D	135106/FN	0.5 - 6.0	50 - 850	Sq 3/8"	1.1	350 x 40	KDU-1A
KDS-PL6CA/FN-1/4	135106/FN-1/4	0.5 - 6.0	50 - 850	Hex 1/4"	1.1	350 x 40	KDU-1A
KDS-PL10CA/FN 2D 3D	135110/FN	0.8 - 10	50 - 600	Sq 3/8"	1.1	350 x 40	KDU-1A
KDS-PL10CA/FN-1/4	135110/FN-1/4	0.8 - 10	50 - 600	Hex 1/4"	1.1	350 x 40	KDU-1A
KDS-PL15CA/FN 2D 3D	135115/FN	0.5 - 15	50 - 320	Sq 3/8"	1.1	350 x 40	KDU-1A
KDS-PL15CA/FN-1/4	135115/FN-1/4	0.5 - 12	50 - 320	Hex 1/4"	1.1	350 x 40	KDU-1A
KDS-PL20CA/FN 2D	135120/FN	2 - 20	20 - 210	Sq 3/8"	1.6	348 x 48	KDU-1A
KDS-PL35CA/FN 2D 3D	135135/FN	3 - 35	20 - 140	Sq 3/8"	2.1	409 x 57	KDU-1A
KDS-PL50CA/FN 2D 3D	135150/FN	5 - 50	20 - 90	Sq 1/2"	2.3	420 x 43	KDU-1A

KDS CA with angle head

Model	Kod	Tork No	RPM	BIT Ölçüsü	Ağırlık (kg)	Ölçüler (mm)	Controller
KDS-PL3CA/ANG	135103/A	0.4 - 3	50 - 1800	Hex 1/4"	0.7	280 x 40	KDU-1A
KDS-PL6CA/ANG 2D 3D	135106/A	0.5 - 5.5	50 - 850	Hex 1/4"	0.7	280 x 40	KDU-1A
KDS-PL10CA/ANG 2D 3D	135110/A	0.8 - 9	50 - 600	Hex 1/4"	0.7	280 x 40	KDU-1A
KDS-PL15CA/ANG/1-4	135115/A/1-4	0.5 - 12	50 - 320	Hex 1/4"	0.9	280 x 40	KDU-1A

PLUTO MITO & NATO CA

Model	Kod	Tork No	RPM	BIT Ölçüsü	Ağırlık (kg)	Ölçüler (mm)	Controller
MITO15CA 2D 2D Expl 3D	170016	0.35 - 1.5	450 - 850	Hex 1/4"	0.36	193 x 32	Serie EDU2AE
PLUTO3CA 2D 3D	130303	0.5 - 2.5	370 - 1300	Hex 1/4"	0.5	168 x 40	Serie EDU2AE
PLUTO6CA 2D 3D	133206	1 - 6	200 - 850	Hex 1/4"	0.5	168 x 40	Serie EDU2AE
PLUTO10CA/N 2D 2D Expl 3D	133211/N	1.5 - 10	110 - 600	Hex 1/4"	0.5	168 x 40	Serie EDU2AE
PLUTO15CA/N 2D 3D	133216/N	2.0 - 15	60 - 320	Hex 1/4"	0.5	168 x 40	Serie EDU2AE
PLUTO20CA 2D 2D Expl 3D	133221	3.0 - 20	50 - 200	Sq 3/8"	1.1	232 x 47	Serie EDU2AE
PLUTO35CA 2D 2D Expl 3D	133236	3.0 - 35	40 - 140	Sq 3/8"	1.5	247 x 57	Serie EDU2AE
PLUTO50CA 2D 2D Expl 3D	133250	5.0 - 50	20 - 90	Sq 1/2"	1.5	252 x 57	Serie EDU2AE
MITO15CA/FN 2D 2D Expl 3D	170016/FN	0.35 - 1.5	450 - 850	Hex 1/4"	0.4	271 x 33	Serie EDU2AE
PLUTO3CA/FN2 2D 3D	130303/FN2	0.5 - 2.5	370 - 1300	Sq 3/8"	0.7	268 x 40	Serie EDU2AE
PLUTO3CA/FN2/1-4 2D 3D	130303/FN2/1-4	0.5 - 2.5	370 - 1300	Hex 1/4"	0.7	268 x 40	Serie EDU2AE
PLUTO6CA/FN2 2D 3D	133206/FN2	1 - 6	200 - 850	Sq 3/8"	0.7	268 x 40	Serie EDU2AE
PLUTO6CA/FN2/1-4 2D 3D	133206/FN2/1-4	1 - 6	200 - 850	Hex 1/4"	0.7	268 x 40	Serie EDU2AE
PLUTO10CA/FN2 2D 3D	133211/FN2	1.5 - 10	110 - 600	Sq 3/8"	0.7	268 x 40	Serie EDU2AE
PLUTO10CA/FN2/1-4 2D 3D	133211/FN2/1-4	1.5 - 10	110 - 600	Hex 1/4"	0.7	268 x 40	Serie EDU2AE
PLUTO15CA/FN2 2D 3D	133216/FN2	2.0 - 15	60 - 320	Sq 3/8"	0.7	268 x 40	Serie EDU2AE
PLUTO20CA/FN 2D 2D Expl 3D	133221/FN	3.0 - 20	50 - 200	Sq 3/8"	1.35	323 x 47	Serie EDU2AE
PLUTO35CA/FN 2D 2D Expl 3D	133236/FN	3.0 - 35	40 - 140	Sq 3/8”	1.95	338 x 57	Serie EDU2AE
PLUTO50CA/FN 2D 2D Expl 3D	133250/FN	5.0 - 50	20 - 90	Sq 1/2"	1.95	351 x 57	Serie EDU2AE

PLUTO MITO & NATO CA - Torque & Angle

Model	Kod	Tork No	RPM	BIT Ölçüsü	Ağırlık (kg)	Ölçüler (mm)	Controller
NATO15CA/TA 2D 2D Expl	163015/TA	0.02 - 0.27	100 - 700	Half moon 4mm	0.18	150 x 25	EDU2AE/TOP/NT/TA
NATO50CA/TA 2D 2D Expl 3D	163050/TA	0.05 - 0.5	50 - 700	Hex 1/4"	0.18	150 x 25	EDU2AE/TOP/NT/TA
MITO15CA/TA 2D 2D Expl 3D	170016/TA	0.35 - 1.5	450 - 850	Hex 1/4"	0.36	193 x 32	EDU2AE/TOP/TA
MITO15CA/FN/TA 3D	170016/FN/TA	0.35 - 1.5	450 - 850	Hex 1/4"	0.4	271 x 32	EDU2AE/TOP/TA
PLUTO3CA/TA 3D	130303/TA	0.5 - 2.5	370 - 1300	Hex 1/4"	0.5	168 x 40	EDU2AE/TOP/TA
PLUTO3CA/FN2/TA 3D	130303/FN2/TA	0.5 - 2.5	370 - 1300	Sq 3/8”	0.7	268 x 40	EDU2AE/TOP/TA
PLUTO3CA/FN2/TA/1-4	130303/FN2/TA/1-4	0.5 - 2.5	370 - 1300	Hex 1/4"	0.7	247 x 40	EDU2AE/TOP/TA
PLUTO6CA/TA 3D	133206/TA	1 - 6	200 - 850	Hex 1/4"	0.5	168 x 40	EDU2AE/TOP/TA
PLUTO6CA/FN2/TA 3D	133206/FN2/TA	1 - 6	200 - 850	Sq 3/8”	0.7	268 x 40	EDU2AE/TOP/TA
PLUTO6CA/FN2/TA/1-4	133206/FN2/TA/1-4	1 - 6	200 - 850	Hex 1/4"	0.7	247 x 40	EDU2AE/TOP/TA
PLUTO10CA/TA 3D	133211/TA	1.5 - 10	110 - 600	Hex 1/4"	0.5	168 x 40	EDU2AE/TOP/TA
PLUTO10CA/FN2/TA 3D	133211/FN2/TA	1.5 - 10	110 - 600	Sq 3/8”	0.7	268 x 40	EDU2AE/TOP/TA
PLUTO10CA/FN2/TA/1-4	133211/FN2/TA/1-4	1.5 - 10	110 - 600	Hex 1/4"	0.7	247 x 40	EDU2AE/TOP/TA
PLUTO15CA/TA 3D	133216/TA	2.0 - 15	60 - 320	Hex 1/4"	0.5	168 x 40	EDU2AE/TOP/TA
PLUTO15CA/FN2/TA 3D	133216/FN2/TA	2.0 - 15	60 - 320	Sq 3/8”	0.7	268 x 40	EDU2AE/TOP/TA
PLUTO20CA/TA	133221/TA	3.0 - 20	50 - 200	Sq 3/8”	1.1	232 x 47	EDU2AE/TOP/TA
PLUTO20CA/FN/TA	133221/FN/TA	3.0 - 20	50 - 200	Sq 3/8”	1.35	323 x 47	EDU2AE/TOP/TA
PLUTO35CA/TA	133236/TA	3.0 - 35	40 - 140	Sq 3/8”	1.5	247 x 57	EDU2AE/TOP/TA
PLUTO35CA/FN/TA	133236/FN/TA	3.0 - 35	40 - 140	Sq 3/8”	1.95	338 x 57	EDU2AE/TOP/TA
PLUTO50CA/TA	133250/TA	5.0 - 50	20 - 90	Sq 1/2"	1.5	252 x 57	EDU2AE/TOP/TA
PLUTO50CA/FN/TA	133250/FN/TA	5.0 - 50	20 - 90	Sq 1/2"	1.95	351 x 57	EDU2AE/TOP/TA

KBL CA

Model	Kod	Tork No	RPM	BIT Ölçüsü	Ağırlık (kg)	Ölçüler (mm)	Controller
KBL04FR/CA 2D 2D Expl 3D	190004/CA	0.04 - 0.4	700 - 1150	Hex 1/4"	0.6	257 x 40	EDU1BL/SG
KBL15FR/CA 2D 2D Expl 3D	190015/CA	0.4 - 1.5	700 - 1150	Hex 1/4"	0.6	257 x 40	EDU1BL/SG
KBL30FR/CA 2D 2D Expl 3D	190030/CA	0.7 - 3	700 - 1150	Hex 1/4"	0.75	264 x 40	EDU1BL/SG
KBL40FR/CA 2D 2D Expl	190040/CA	0.9 - 4	400 - 700	Hex 1/4"	0.75	264 x 40	EDU1BL/SG
KBL04FR/CA/FN 2D 2D Expl 3D	190004/CA/FN	0.04 - 0.4	700 - 1150	Hex 1/4"	0.65	330 x 40	EDU1BL/SG
KBL15FR/CA/FN 2D 2D Expl 3D	190015/CA/FN	0.4 - 1.5	700 - 1150	Hex 1/4"	0.65	330 x 40	EDU1BL/SG
KBL30FR/CA/FN 2D 2D Expl 3D	190030/CA/FN	0.7 - 3	700 - 1150	Hex 1/4"	0.8	338 x 40	EDU1BL/SG
KBL40FR/CA/FN 2D 2D Expl	190040/CA/FN	0.9 - 4	400 - 700	Hex 1/4"	0.8	338 x 40	EDU1BL/SG
