The perfect solution for clean room applications. KBL screwdrivers feature state-of-the-art brushless motors and clutch torque control.
Simple set up

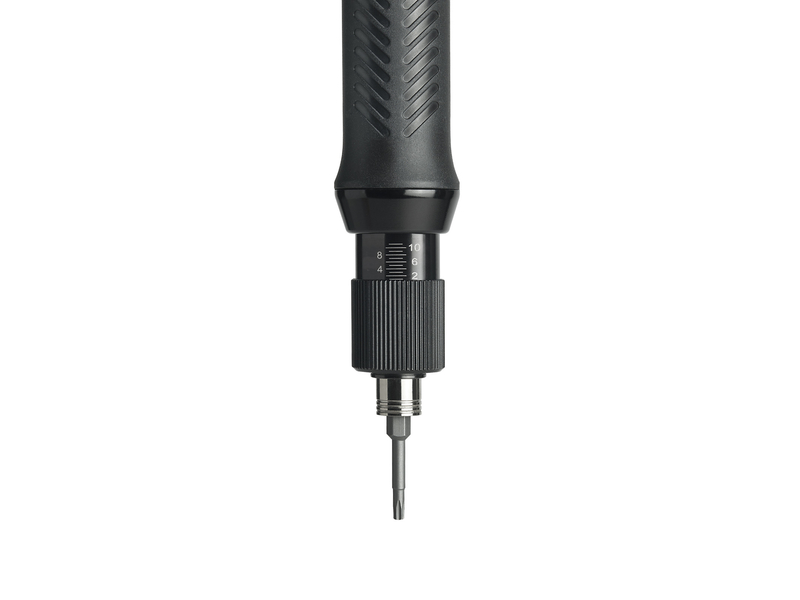

KBL tools are very easy to install and operate. The torque is set externally: you’ll only have to manually adjust the front clutch according to the required torque setting.

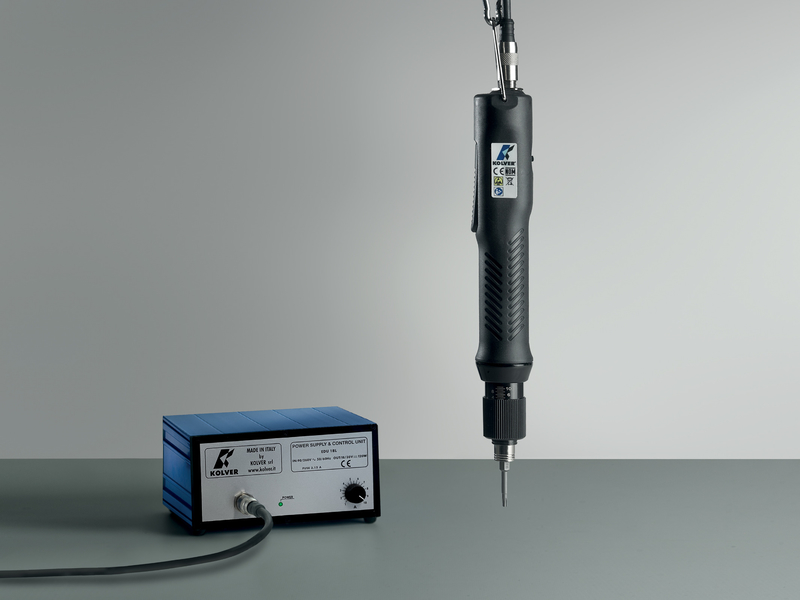

Each screwdriver works in combination with a control unit. Its electronic control circuit cuts the power supply to the screwdriver motor in response to the clutch action, as soon as the pre-set torque has been reached.
Maintenance-free
No wearing components and no brush replacement – KBL Screwdrivers combine Swiss brushless motors with magnetic clutch switches for a real maintenance-free solution. The absence of maintenance operations guarantees high productive continuity.
EDU1BL control units for KBL screwdrivers feature state-of-the-art electronics working at only 30 VDC. This design results in very low current to the driver’s start and clutch switches to extend their life even further.
For a cleaner environment
No brushes means zero emissions of carbon dust or other pollutants into the working environment, which makes KBL screwdrivers perfect for clean-room applications.
Safe and ergonomic

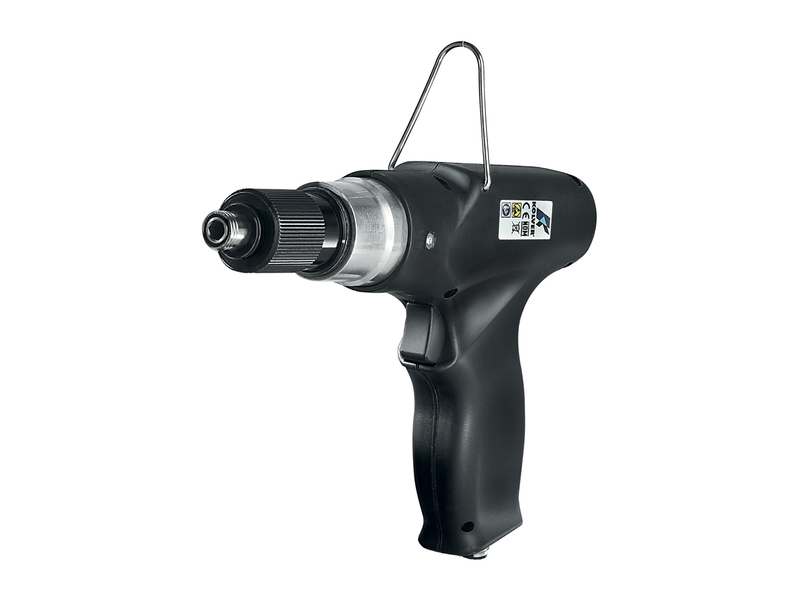

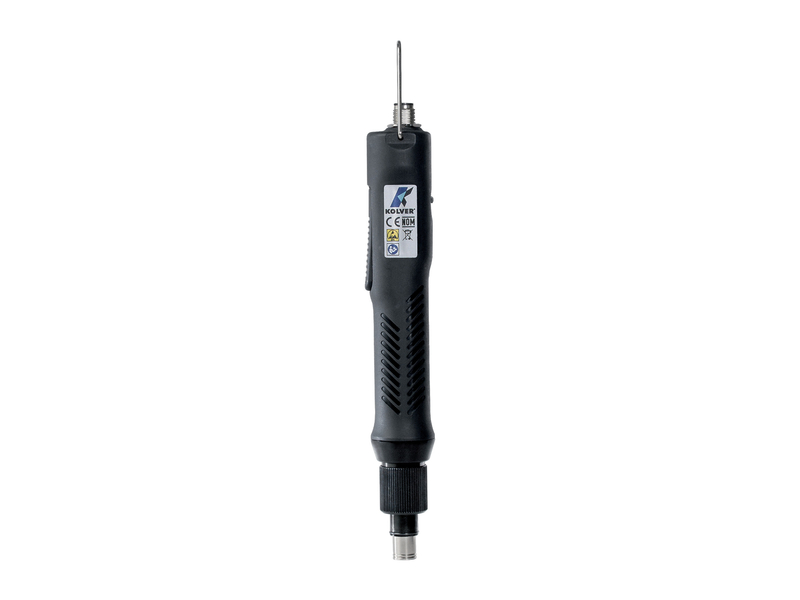

KBL hand-held screwdrivers are available in inline, right angle and pistol style and they all come standard with ESD-safe housing.
Small and lightweight for utmost operator comfort and with advanced ergonomic design, they ensure very low noise level, minimum vibrations and maximum safety.
Improve your productivity by cutting investments
It is possible to use two screwdrivers with just one control unit by connecting a double output device called DOCK02 (for KBL FR) or DOCK02/S (for KBL FR/S). The two screwdrivers can be used at the same time for maximum productivity. 230V only.
Note: inline KBL Screwdrivers are also available in KBL FR/AR, with autoreverse feature.
| Model | Kod | Tork No | RPM | Ağırlık (kg) | L x Ø mm | Controller |
|---|---|---|---|---|---|---|
| KBL04P/FR | 190005 | 0.04 - 0.4 | 700 - 1150 | 0.5 | 154 x 210 x 45 | EDU1BL |
| KBL15P/FR | 190016 | 0.4 - 1.5 | 700 - 1150 | 0.5 | 154 x 210 x 45 | EDU1BL |
| KBL30P/FR 3D | 190031 | 0.7 - 3.0 | 700 - 1150 | 0.65 | 154 x 217 x 45 | EDU1BL |
| KBL40P/FR | 190041 | 0.9 - 4.0 | 400 - 700 | 0.65 | 154 x 217 x 45 | EDU1BL |
| Model | Kod | Tork No | RPM | Ağırlık (kg) | L x Ø mm | Controller |
|---|---|---|---|---|---|---|
| KBL04P/S | 190005/S | 0.04 - 0.4 | 700 - 1150 | 0.5 | 154 x 210 x 45 | EDU1BL/SG |
| KBL15P/S 2D | 190016/S | 0.4 - 1.5 | 700 - 1150 | 0.5 | 154 x 210 x 45 | EDU1BL/SG |
| KBL30P/S 2D 2D Expl | 190031/S | 0.7 - 3 | 700 - 1150 | 0.65 | 154 x 217 x 45 | EDU1BL/SG |
| KBL40P/S 2D 2D Expl | 190041/S | 0.9 - 4 | 400 - 700 | 0.65 | 154 x 217 x 45 | EDU1BL/SG |
| Model | Kod | Tork No | RPM | Ağırlık (kg) | L x Ø mm | Controller |
|---|---|---|---|---|---|---|
| KBL04FR/S/ANG 2D 3D | 190004/S/A | 0.04 - 0.4 | 700 - 1150 | 0.6 | 316 x 37 | EDU1BL/SG |
| KBL15FR/S/ANG 2D 3D | 190015/S/A | 0.4 - 1.5 | 700 - 1150 | 0.6 | 316 x 37 | EDU1BL/SG |
| KBL30FR/S/ANG 2D 3D | 190030/S/A | 0.7 - 3.0 | 700 - 1150 | 0.75 | 330 x 43 | EDU1BL/SG |
| KBL40FR/S/ANG 2D 3D | 190040/S/A | 0.9 - 4.0 | 400 - 700 | 0.75 | 330 x 43 | EDU1BL/SG |
| Model | Kod | Settable speed | Ramp option | I/O signals | Serial print | Screw count | Time min-max | Ağırlık (kg) | Ölçüler (mm) |
|---|---|---|---|---|---|---|---|---|---|
| EDU1BL | 3000 | 0.6 | 138 x 118 x 67 | ||||||
| EDU1BL/SG | 003000/SG | with ACE | with ACE | with ACE | 0.6 | 138 x 118 x 67 |
