Aksesuarlar

Belgeler
Modeller

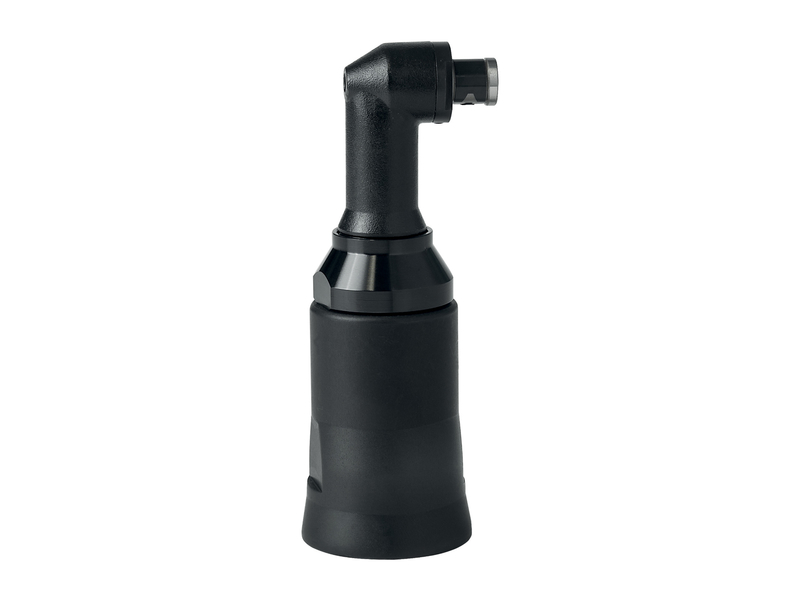

90° Angle attachments

ModelKodUyumlu ModellerAçıklama
ANG HD1
2D  3D		010100FAB & RAF90° Angle head for FAB Series, 1/4" hex output
ANG HD2
2D		010120FAB & RAF90° Angle head for RAF Series, 1/4" hex output
ANG HD8
2D  3D		010143FAB & RAFHeavy duty 90° angle head for FAB Series, 1/4" hex output
ANG HD8
2D  3D		010144FAB & RAFHeavy duty 90° angle head for RAF Series, 1/4" hex output

Lock-out cover

ModelKodUyumlu ModellerAçıklama
Lock-out cover219012FAB & RAFLock-out cover with adjustment key for FAB. A lock-out cover locks the screwdriver's clutch in order to avoid any accidental torque change.

Tool holders and adaptors

ModelKodUyumlu ModellerAçıklama
ARM PV1010500FAB & RAF, KBL, PLUTOARM PV1 support arm consists of a vertical support on which a 180° pivoting arm is attached.

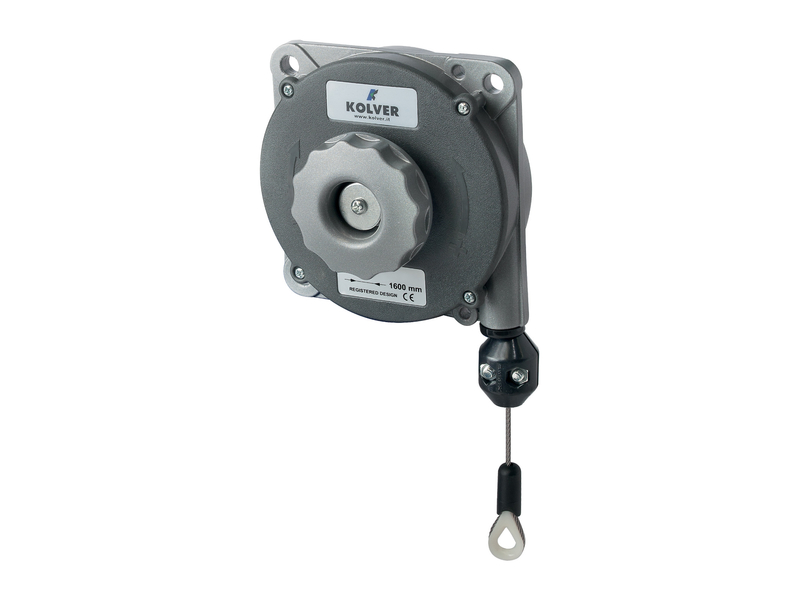

TECBA1
2D  3D		010300FAB & RAF, KBL, PLUTOTECBA1 tool balancers allow screwdrivers to be positioned over the workstation for maximum operator comfort. 0.4-1 kg capacity.
TECBA2
3D		010312PLUTOTECBA2 tool balancers allow screwdrivers to be positioned over the workstation for maximum operator comfort. 1-2 kg capacity.
TECBA3
3D		010313PLUTOTECBA3 tool balancers allow screwdrivers to be positioned over the workstation for maximum operator comfort. 2-3 kg capacity.
Pistol FAB, RAF, KBL and PLUTO wall support
2D		010175FAB & RAF, KBL, PLUTOWall supports for pistol screwdrivers can be fixed to a vertical surface to easily store FAB, RAF, PLUTO and KBL pistol tools when not in use.
Wall support for angle RAF and PLUTO
2D		010176RAF, PLUTOWall supports can be fixed to a vertical surface to easily store RAF and PLUTO tools with angle head when not in use.
Diametre adaptor234545PLUTOReduction adaptor for PLUTO35 & 50CA drivers allowing interface with LINAR and CAR series arms
UR-Mount
2D  Misc		010695/URPLUTOTool holder for PLUTO3, 6, 10 & 15CA and CA/FN2 series drivers.To be attached to Universal Robots® robotic arm.
Wall mount tilting bracket for KDU
2D  3D		010401KDUWall mount tilting bracket for KDU for wall or column use
Pivoting table stand for KDU
2D  3D		010402KDUPivoting table stand for KDU for table use, tiltable

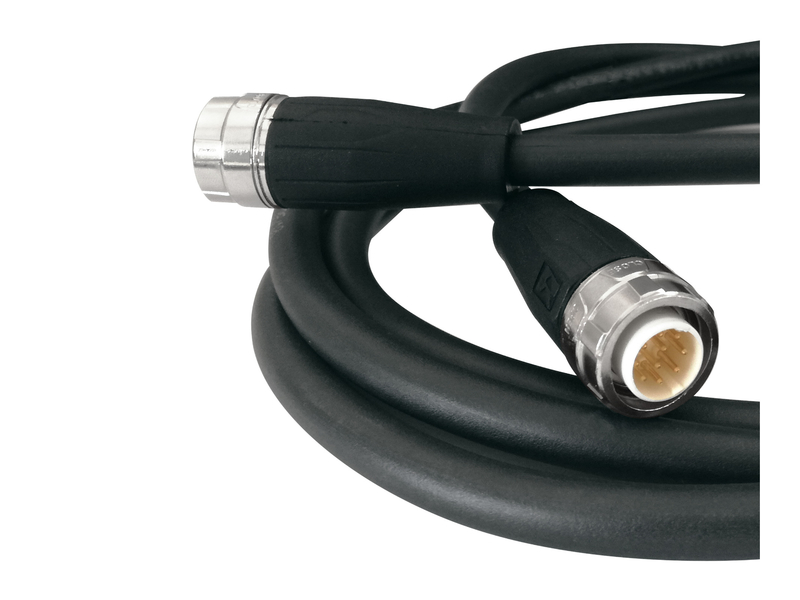

Connection cables

ModelKodUyumlu ModellerAçıklama
2.5 m200063FAB & RAF, KBL, NATO, MITO, PLUTOStandard 5 pin cable − included with screwdriver
2.5 m200063/HFAB & RAF, KBL, NATO, MITO, PLUTO5 pin cable with strain relief − heavy duty applications
5 m200563FAB & RAF, KBL, NATO, MITO, PLUTO5 pin cable, 5 m length
5 m200563/S FAB & RAF, KBL, NATO, MITO, PLUTO5 pin spiral cable
8 m200863FAB & RAF, KBL, NATO, MITO, PLUTO5 pin cable, 8 m length
2.5 m250063/NKBL/S, PLUTO/TA, NATO/TA, MITO /TAStandard 8 pin cable − included with screwdriver
2.5 m250063/HKBL/S, PLUTO/TA, NATO/TA, MITO /TA8 pin cable with strain relief − heavy duty applications
5 m250563KBL/S, PLUTO/TA, NATO/TA, MITO /TA8 pin cable, 5 m length
5 m250563/SKBL/S, PLUTO/TA, NATO/TA, MITO /TA8 pin spiral cable
2.5 m250363KDS-NTCable 2.5 m for KDS-NT
5 m250363/5KDS-NTCable 5 m for KDS-NT
2.5 m250064KDSCable 2.5 m
2.5 m250064/HKDSCable 2.5 m, heavy duty
2.5 m250064/AKDSCable 2.5 m, 90°, heavy duty
5 m250564KDSCable 5 m
5 m250564/HKDSCable 5 m, heavy duty
5 m250564/AKDSCable 5 m, 90°, heavy duty
5 m250564/HSKDSCable 5 m, spiral, heavy duty
7 m250764KDSCable 7 m, heavy duty

Clutch covers

ModelKodUyumlu ModellerAçıklama
Clutch cover for KBL04-15020028KBLModel for KBL04FR and KBL15FR. It prevents the operator from accidentally altering the clutch adjustment.
Clutch cover for KBL30-40020029KBLModel for KBL30FR and KBL40FR. It prevents the operator from accidentally altering the clutch adjustment.
Clutch cover for KBL04-15 CA020028/CAKBLModel for KBL04FR/CA and KBL15FR/CA. It prevents the operator from accidentally altering the clutch adjustment.
Clutch cover for KBL30-40 CA020029/CAKBLModel for KBL30FR/CA and KBL40FR/CA. It prevents the operator from accidentally altering the clutch adjustment.

Riveting heads

ModelKodUyumlu ModellerAçıklama
RIV HD2
2D		010181KBL8 mm hole. Model for KBL30FR and KBL04FR screwdrivers, also for models with signals (KBL FR/S) and autoreverse (KBL FR/AR).
RIV HD4
2D		010183KBL3 mm hole. Model for KBL04FR and KBL15FR screwdrivers, also for models with signals (KBL FR/S) and autoreverse (KBL FR/AR).
RIV HD5
2D		010184KBL3 mm hole. Model for KBL30FR and KBL04FR screwdrivers, also for models with signals (KBL FR/S) and autoreverse (KBL FR/AR).
RIV HD1
2D		010180PLUTO8 mm hole. Model for PLUTO3D, PLUTO6D, PLUTO10D/N, PLUTO15D/N.
RIV HD3
2D		010182PLUTO3 mm hole. The 3 mm hole can be modified up to 10 mm. Model for PLUTO3D, PLUTO6D, PLUTO10D/N, PLUTO15D/N.

Flange mount kits

ModelKodUyumlu ModellerAçıklama
1/4" - 1/4" kit for 04-15800406KBL1/4" - 1/4" flange mount kit that turns KBL04 CA and KBL15 CA screwdrivers into KBL CA/FN.
1/4" - 1/4" kit for 30-40800407KBL1/4" - 1/4" flange mount kit that turns KBL30 CA and KBL40 CA screwdrivers into KBL CA/FN.
1/4" - 3/8" kit800400PLUTOAn 1/4" - 3/8" flange mount kit turns a PLUTO (3, 6, 10 or 15) CA into PLUTO CA/FN2.
3/8" - 3/8" kit800401PLUTOFor PLUTO20. It turns a PLUTO20CA into PLUTO20CA/FN.
3/8" - 3/8" kit800403PLUTOFor PLUTO35. It turns a PLUTO35CA into PLUTO35CA/FN.

Telescopic spindle

ModelKodUyumlu ModellerAçıklama
1/2" - 1/2"
2D  2D expl  3D		800319PLUTOModel for PLUTO 50/FN. Max 50 Nm.
1/4" - 3/8"
2D  2D expl  3D		800320PLUTOModel for PLUTO CA/FN2. Max 15 Nm.
3/8" - 3/8"
2D  2D expl  3D		800321PLUTOModel for PLUTO20 and PLUTO35. Max 35 Nm.
1/4" - 1/4"
2D  2D expl  3D		800322KBL, MITOModel for PLUTO FR/FN and MITO /FN. Max 7 Nm.

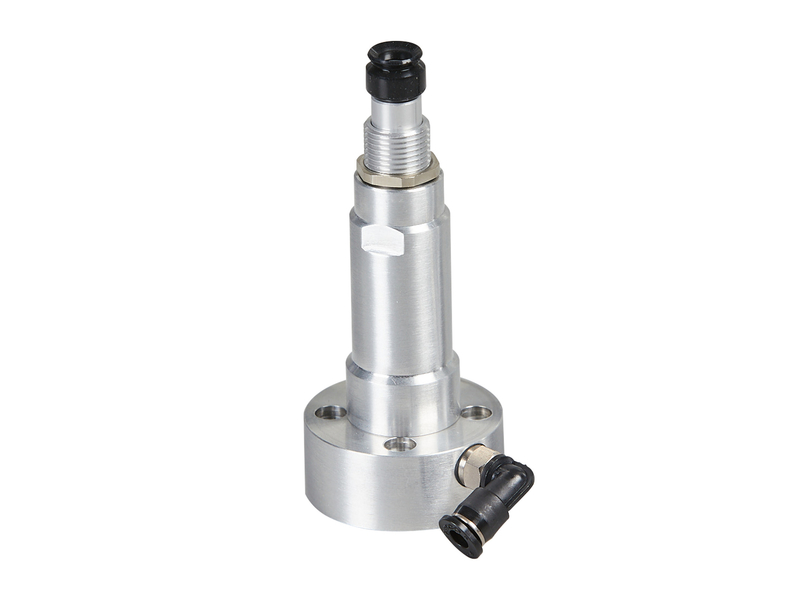

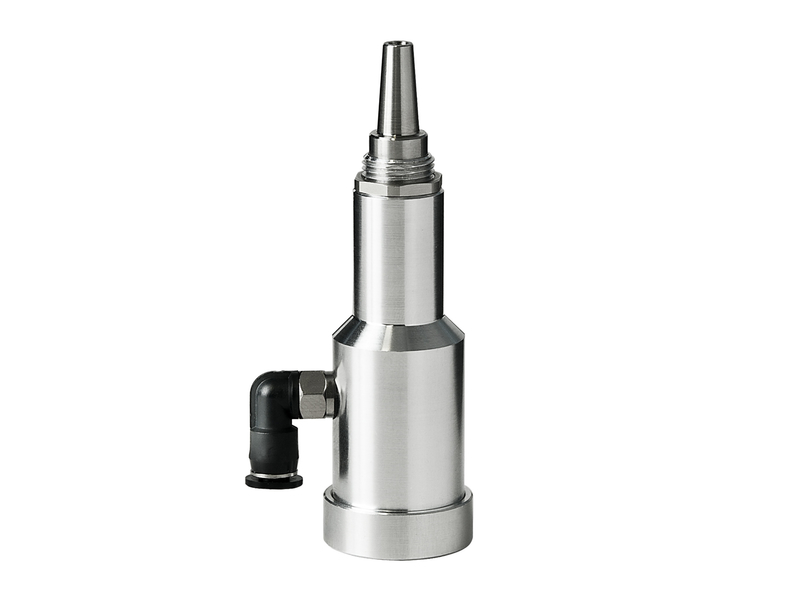

Vacuum attachments

ModelKodUyumlu ModellerAçıklama
A2
2D  Misc  3D		010111/1KBL, NATO, MITO, PLUTOFor non-magnetic M2-M2.6 screws. It can be installed on any screwdriver.
A3
2D  Misc		010111/2KBL, NATO, MITO, PLUTOFor non-magnetic M3-M4 screws. It can be installed on any screwdriver.
ASP HD6
2D  Misc		010117NATO, MITORubber pad output. Best suited for round-headed screws. Model specifically designed for NATO15.
ASP HD6/UNI
Misc		010117/UNINATO, MITOMetal tube output. Best suited for grub, allen and long screws. Model specifically designed for NATO15.
ASP HD7
2D  2D expl  Misc		010118KDS-NT, NATORubber pad output. Best suited for round-headed screws. Model specifically designed for NATO50 and KDS-NT70.
ASP HD7/UNI
2D expl  Misc		010118/UNIKDS-NT, NATOMetal tube output. Best suited for grub, allen and long screws. Model specifically designed for NATO50 and KDS-NT70.
ASP HD8
2D  Misc  3D		010119NATO, MITORubber pad output. Best suited for round-headed screws. Model specifically designed for MITO15.
ASP HD8/UNI
Misc  3D		010119/UNINATO, MITOMetal tube output. Best suited for grub, allen and long screws. Model specifically designed for MITO15.
ASP HD9
2D  2D expl  3D		010121KDS, PLUTORubber pad output. Best suited for round-headed screws. Model specifically designed for PLUTO3-15, KDS-MT1.5, KDS-PL3-15.
ASP HD9/UNI
2D expl  Misc  3D		010121/UNIKDS, PLUTOMetal tube output. Best suited for grub, allen and long screws. Model specifically designed for PLUTO3-15, KDS-MT1.5, KDS-PL3-15.
ASP HD10
2D  Misc  3D		010122KBLRubber pad output. Best suited for round-headed screws. Model specifically designed for KBL04 and KBL15.
ASP HD10/UNI
2D  Misc		010122/UNIKBLMetal tube output. Best suited for grub, allen and long screws. Model specifically designed for KBL04 and KBL15.
ASP HD11
2D  Misc  3D		010123KBLRubber pad output. Best suited for round-headed screws. Model specifically designed for KBL30 and KBL40.
ASP HD11/UNI
2D  Misc		010123/UNIKBLMetal tube output. Best suited for grub, allen and long screws. Model specifically designed for KBL30 and KBL40.

Autocatchers

ModelKodUyumlu ModellerAçıklama
AC 2.3010113KBL, NATO, MITO, PLUTOFor M2-M3 screws. Easily picks up non-magnetic screws with a small plastic clamp.
AC 3.5
010114KBL, NATO, MITO, PLUTOFor M3-M5 screws. Easily picks up non-magnetic screws with a small plastic clamp.

Connection devices

ModelKodUyumlu ModellerAçıklama
DOCK 01
2D  3D		020020EDU1FRDual output connector for EDU1FR controllers. Run two drivers with one controller. Drivers cannot be used at the same time.
DOCK 02
2D  3D		020035EDU1BLDual output connector for EDU1BL controllers. Run two drivers with one controller. Both drivers can be used at the same time.
DOCK 02/S
2D		020035/SEDU1BL/SGDual output connector for EDU1FR controllers. Run two drivers with one controller. Drivers cannot be used at the same time.
DOCK 04
2D  3D		020045EDU2AE/TOPDual output connector for PLUTO Series, to be used with EDU2AE/TOP. Run two drivers with one controller (not simultaneously).
DOCK 04/TA/N
2D  3D		020045/TA/NEDU2AE/TOP/TADual output connector for PLUTO TA Series, to be used with EDU2AE/TOP/TA. Run two drivers with one controller (not simultaneously).
DOCK 05
3D		020046KDUDual output connector for KDS screwdrivers, to be used with KDU units. Run two drivers with one controller (not simultaneously).
ACE
2D  3D		020021EDU1FR/SG, EDU1BL/SGScrew counting device for EDU1FR/SG controller. It keeps track of either correct and wrong tightenings, as well as cycles and sequences.
Ethernet device
2D		020075EDU2AE/TOP, EDU2AE/TOP/E o EDU2AE/TOP/TA (multitorque controllers)Connect your PC to any EDU2AE/TOP, EDU2AE/TOP/E or EDU2AE/TOP/TA via remote LAN connection using an ethernet device.
UR® Robot connection device020077EDU2AE/TOP, EDU2AE/TOP/E o EDU2AE/TOP/TA (multitorque controllers)Plug-in device for connecting UR® Robot and EDU2AE/TOP, EDU2AE/TOP/E or EDU2AE/TOP/TA controllers.
UR® Robot connection device020078KDUPlug-in device for connecting UR® Robot and KDU controllers.
2D Barcode reader 020051KDUKDU units can also be controlled via a barcode reader. Scan the right barcode (either 1D or 2D, such as QR codes) to select the correct program.
Adaptor kit SW CBS
2D		010410KDUAdaptor device for connecting the KDU (1A or NT) to the SWBX88 switchbox or CBS880 socket tray.
SWBX88 Switchbox
2D		020033KDU, EDU2AE/TOP, EDU2AE/TOP/E o EDU2AE/TOP/TA (multitorque controllers)Select the right pre-set program by simply pushing a button. 8-program selection.
CBS880 Socket tray
2D		020042KDU, EDU2AE/TOP, EDU2AE/TOP/E o EDU2AE/TOP/TA (multitorque controllers)When a bit or socket is removed from the tray, the control unit automatically selects the pre-set program. 8-program selection
BRCR90 Barcode reader
2D		020050KDU, EDU2AE/TOP, EDU2AE/TOP/E o EDU2AE/TOP/TA (multitorque controllers)Multiprogram units can also be controlled via a barcode scanner. Scan the right barcode to select the correct pre-set program.
Bit change system for robotics and automation
2D		020043CAAllows robotic and automated screwdriving systems to switch between different screwdriving bits with no user intervention.
Quad output connector for K-TESTERComing soonK-TESTERQuadruple output connector for the K-TESTER. Run four external transducers with one torque tester. Transducers cannot be used at the same time.
K-TLS upgrade kit
2D expl		020049KDUK-TLS box to upgrade from TLS1 to K-TLS. Plugs in directly into the KDU and reaction arm.

Remote start and reverse

ModelKodUyumlu ModellerAçıklama
Start / Reverse pedals
2D		020070EDU2AEStart and reverse signals can be activated using a foot pedal. Supplied standard with 3.5 m cable and connector for any EDU2AE controller.

Data printer

ModelKodUyumlu ModellerAçıklama
PRNTR1 Serial printer
2D  3D		020026K, Mini K Torque testersInstantly print each screw tightening result via a serial printer. It connects directly to multiprogram units and K and Mini K/S torque testers.

Visual signals

ModelKodUyumlu ModellerAçıklama
Light tower stack
2D		020080EDU2AEA light stack makes output signals clearly visible. Supplied standard with a 2.5 m cable and 10 pin connector for EDU2AE series.
Light tower stack
2D		020081EDU2AE/TOP, EDU2AE/TOP/TAA light stack makes output signals clearly visible. Supplied standard with a 2.5 m cable and 10 pin connector for EDU2AE/TOP and TOP/TA.
Light tower stack
2D		020083KDUA light stack makes output signals clearly visible. Supplied standard with a 2.5 m cable and 10 pin connector for KDU.
